Precision Mold Design & Manufacturing
8 senior mold designers, 12 CNC machines, 6 precision rubber mixing mills — every mold built in-house, no outsourcing. Cold-runner valve-gate specialists for LSR.
In-House Tooling Means Control, Not Delays.
Every LSR / rubber / plastic mold is designed and machined in our own tooling shop. No external mold makers, no translation loss, no surprise lead times.
- 8 senior designers: 2 with 10+ yrs, 6 with 5+ yrs
- Mastercam, UG NX, AutoCAD, SolidWorks, Pro-E
- 12 CNC machines, CMM, 2.0/2.5 projector, microscope
- Cold-runner valve-gate LSR mold specialists
- T1 samples in 15–25 days
Capability
Technical Specifications
| Design Software | Mastercam, UG NX, AutoCAD, SolidWorks, Pro-E |
|---|---|
| CNC Machines | 12 units in-house (3-axis & 5-axis) |
| Inspection | CMM, 2.0 & 2.5 projector, microscope, roughness tester |
| Mold Types | Cold-runner valve-gate LSR, compression, transfer, plastic injection |
| Mold Life | 500K – 1M+ shots (S136 / NAK80 / P20 steel) |
| T1 Sample Lead | 15–25 days depending on complexity |
| Mold Flow Analysis | Available on request |
| Certifications | ISO 9001 · IATF 16949 |
Process
From DFM to Ship in Four Steps
DFM & Quote
Send drawing (STEP / IGES / PDF). DFM feedback and formal quote within 24 hours.
Mold Build
In-house cold-runner valve-gate mold, T1 samples in 15–25 days depending on complexity.
Mass Production
300K cleanroom injection, automated inspection, full MES traceability per batch.
QC & Ship
CMM + vision + manual QC. FAI / PPAP / CoC reports available. World-wide logistics.
Applications
Where Our LSR Parts Ship
Inside the Department
Shop Floor Gallery

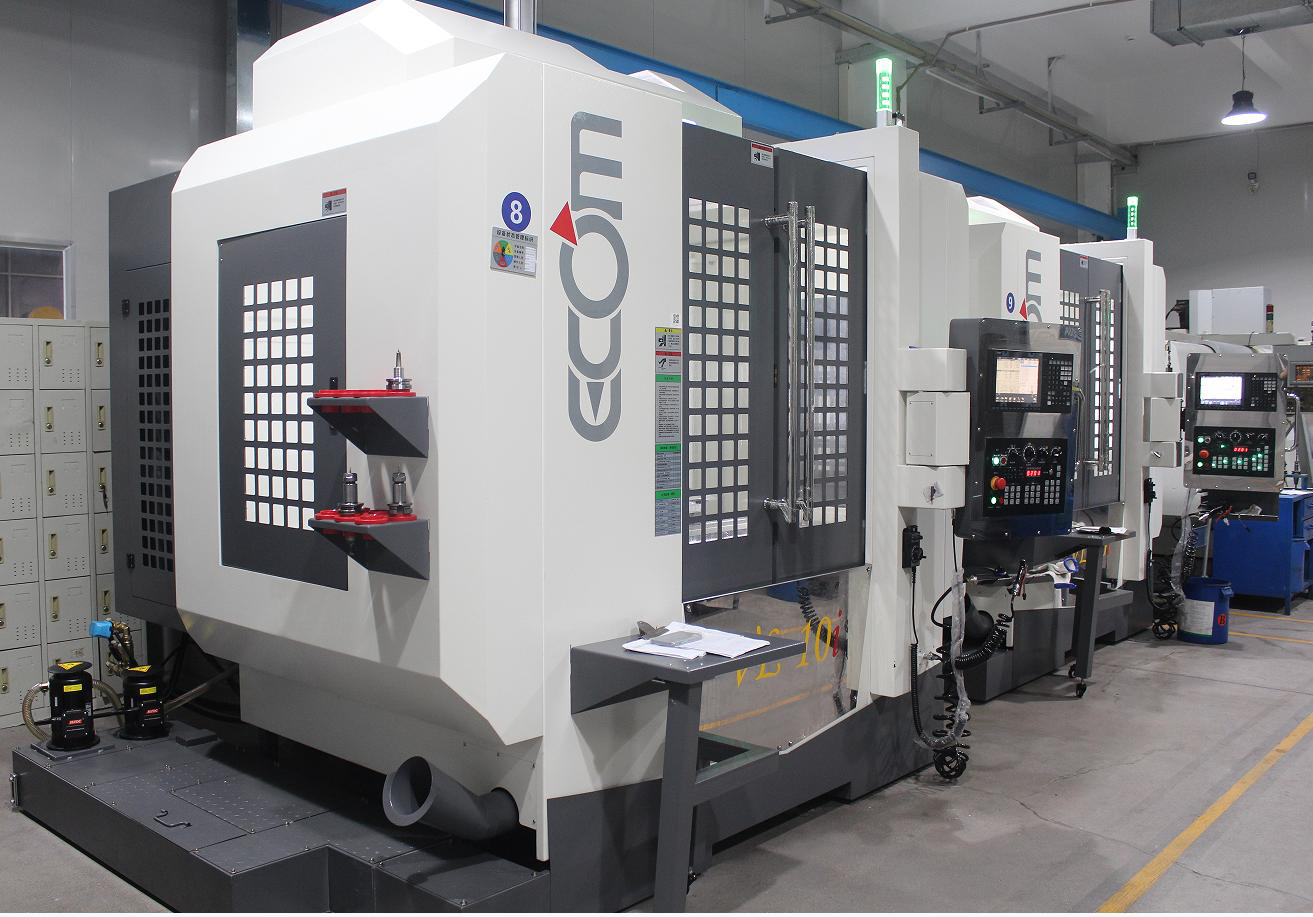

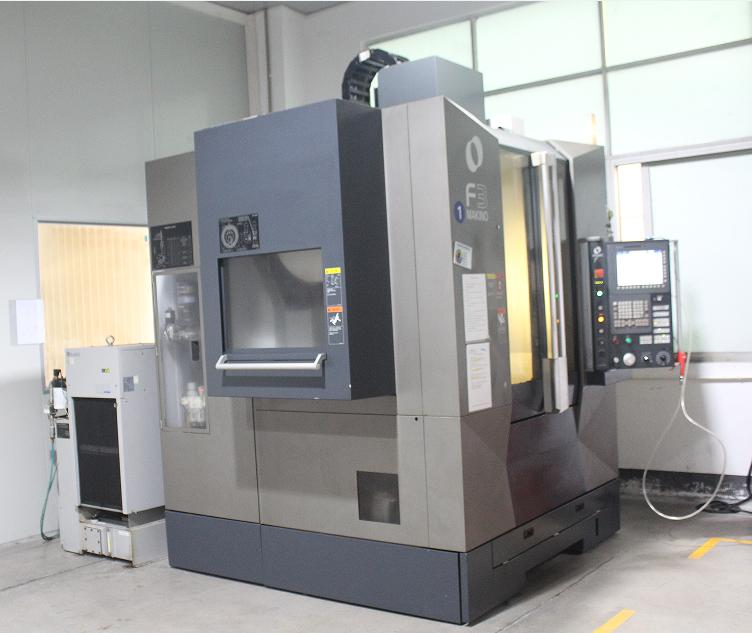

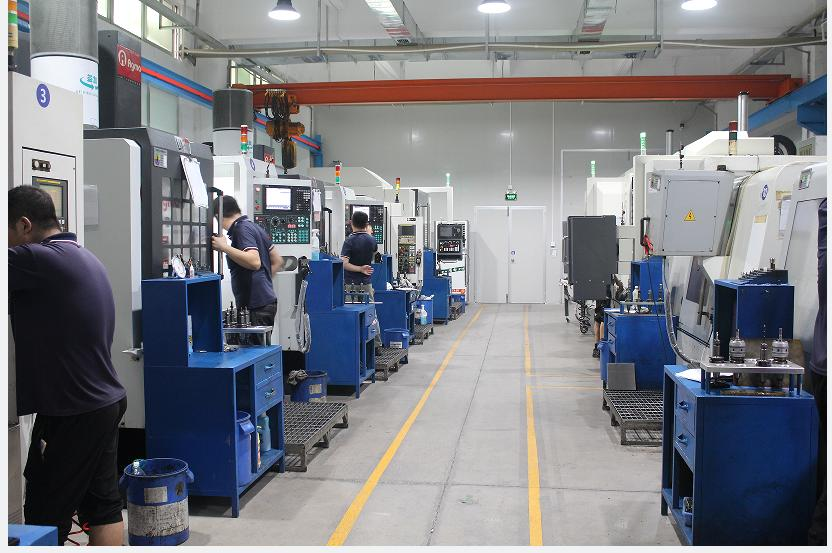

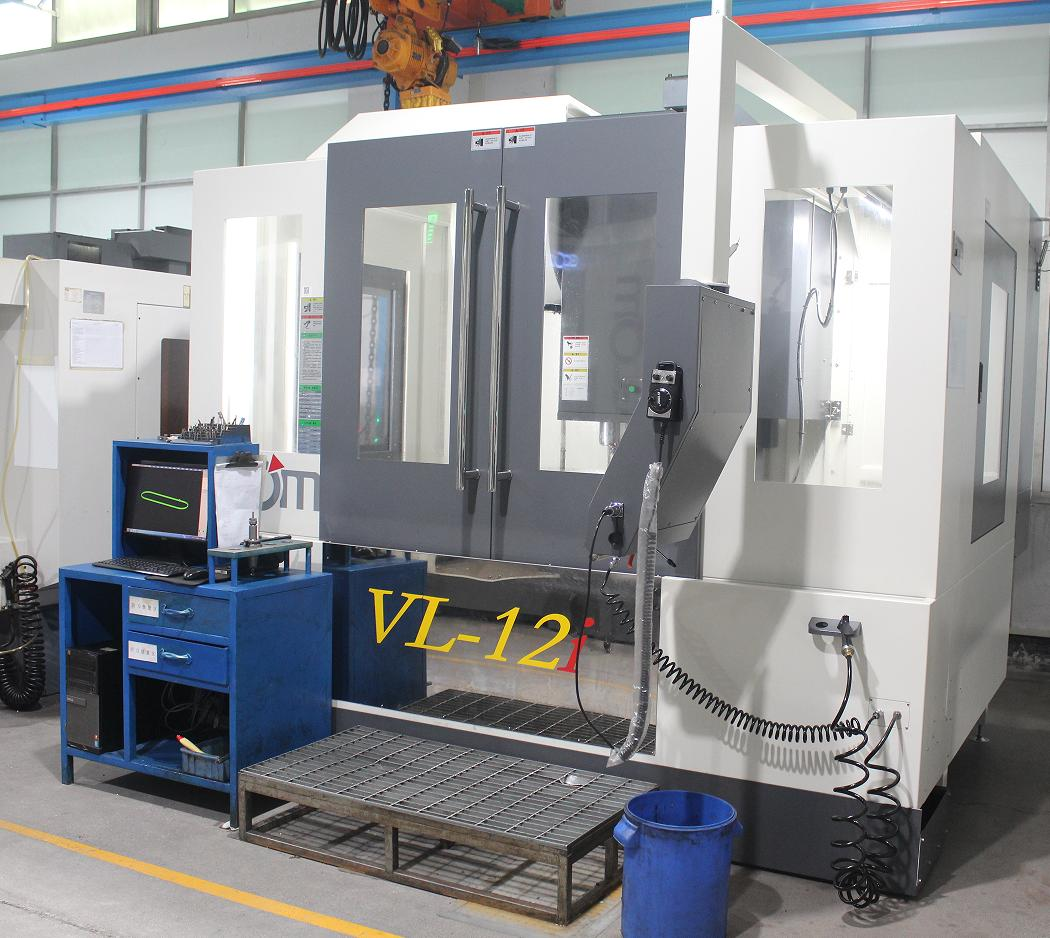

Mold Work Shop.
Our own mold workshop runs 12 CNC machines with 8 senior mold designers (5–10+ years each) working in UG NX, Mastercam and SolidWorks. Cold-runner valve-gate LSR molds, compression and transfer molds — designed, cut and maintained in-house, so tooling changes take days, not weeks.
- 12 CNC machines + EDM, wire-cut and grinding in one shop
- Cold-runner valve-gate LSR tooling built in-house
- Mold flow analysis and DFM feedback within 24 hours

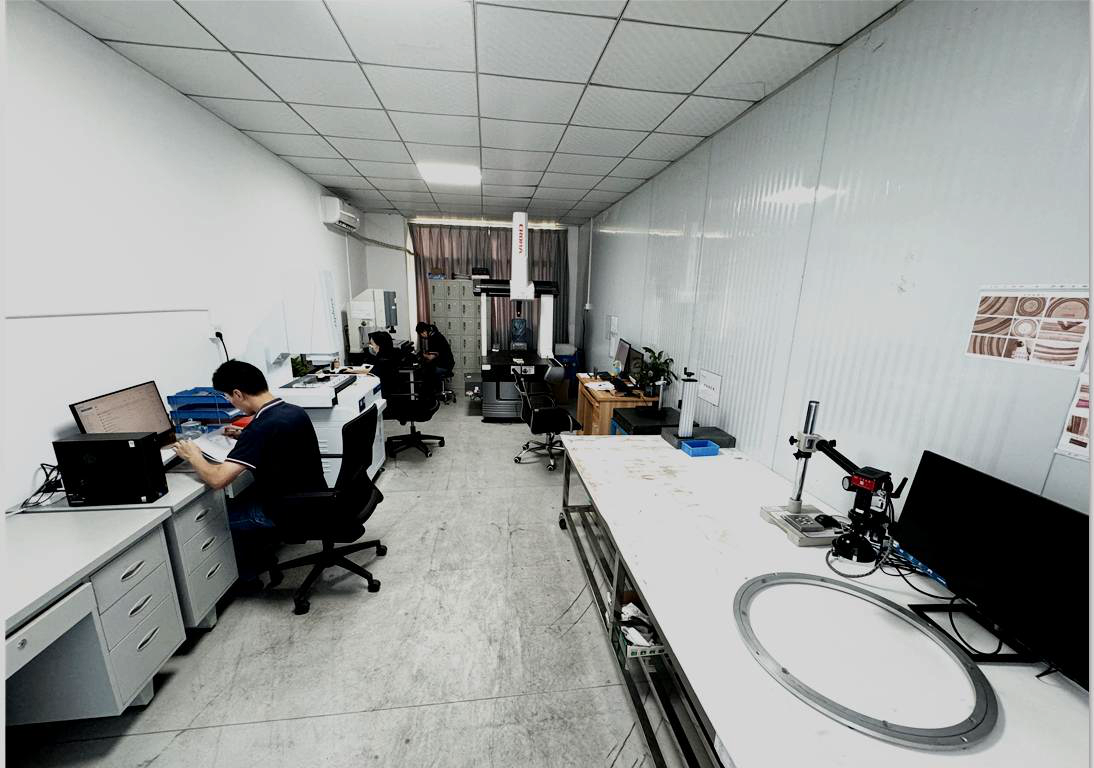

Mould Checking Room.
Every mold passes dimensional and surface verification in our checking room before it enters production — so the first production shot is already in spec.
- 2.0 / 2.5 profile projectors for contour and dimension checks
- CMM measurement of critical dimensions
- Microscope inspection of parting lines and surfaces
- Surface roughness tester verification before T1
- Trial-shot (T1) verification before handover, documented per tool
Tooling Output

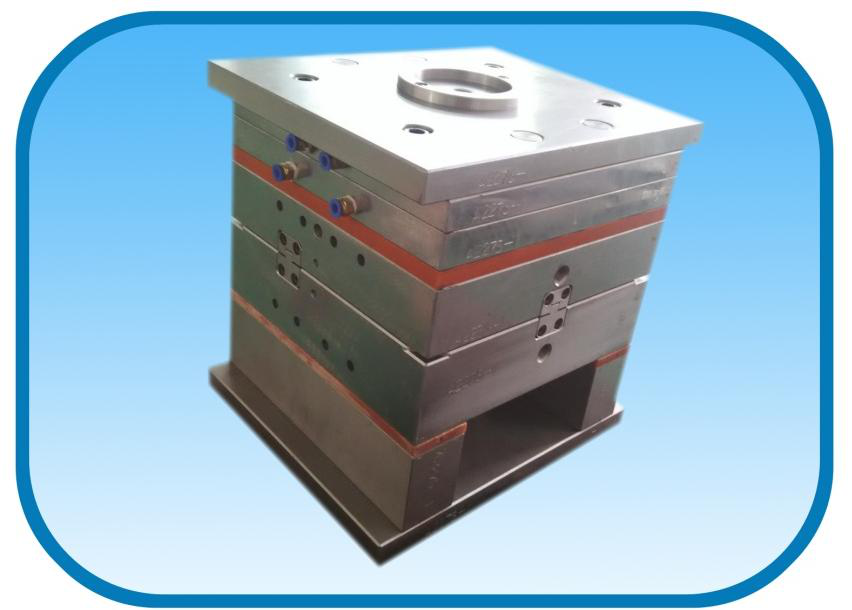

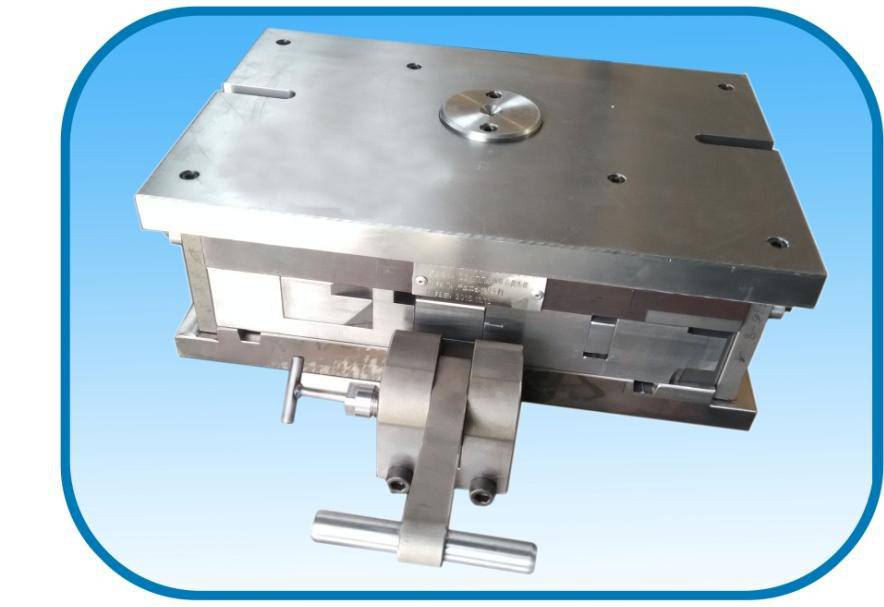

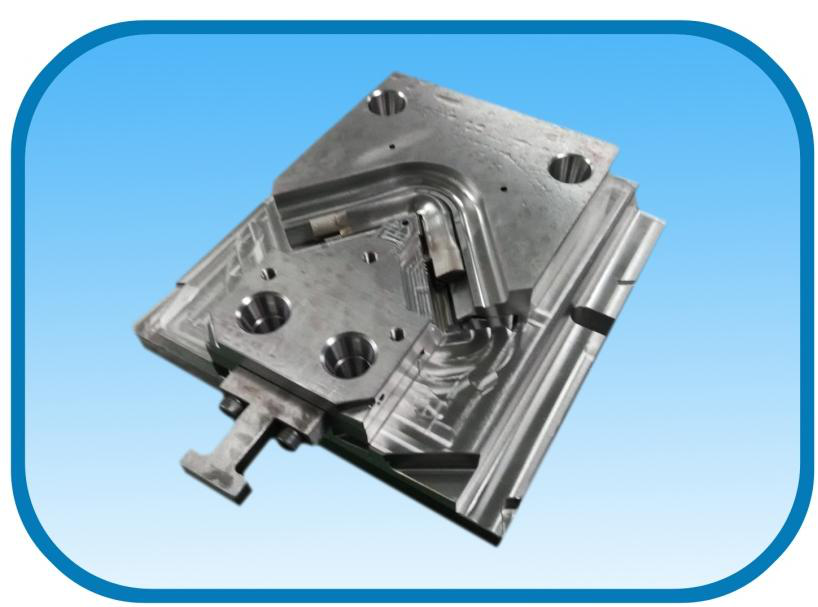

Mold View.
Cold-runner valve-gate LSR molds, compression and transfer molds — built and maintained in-house.
Ready to Start?
Send Your Drawing. Get DFM in 24 Hours.
Our engineers will review your part and come back with a quote, mold plan and lead time — no commitment required.
