Silicone Foam Solutions
Four processes — calendering, extrusion, molding, die-cutting — for EV battery seals, thermal interface pads, gasketing and vibration damping.
Four Processes. One Material. Any Geometry.
Calendered sheet, extruded profile, molded block, or precision die-cut gasket — we run all four silicone foam processes in-house, with custom density, hardness and flame rating.

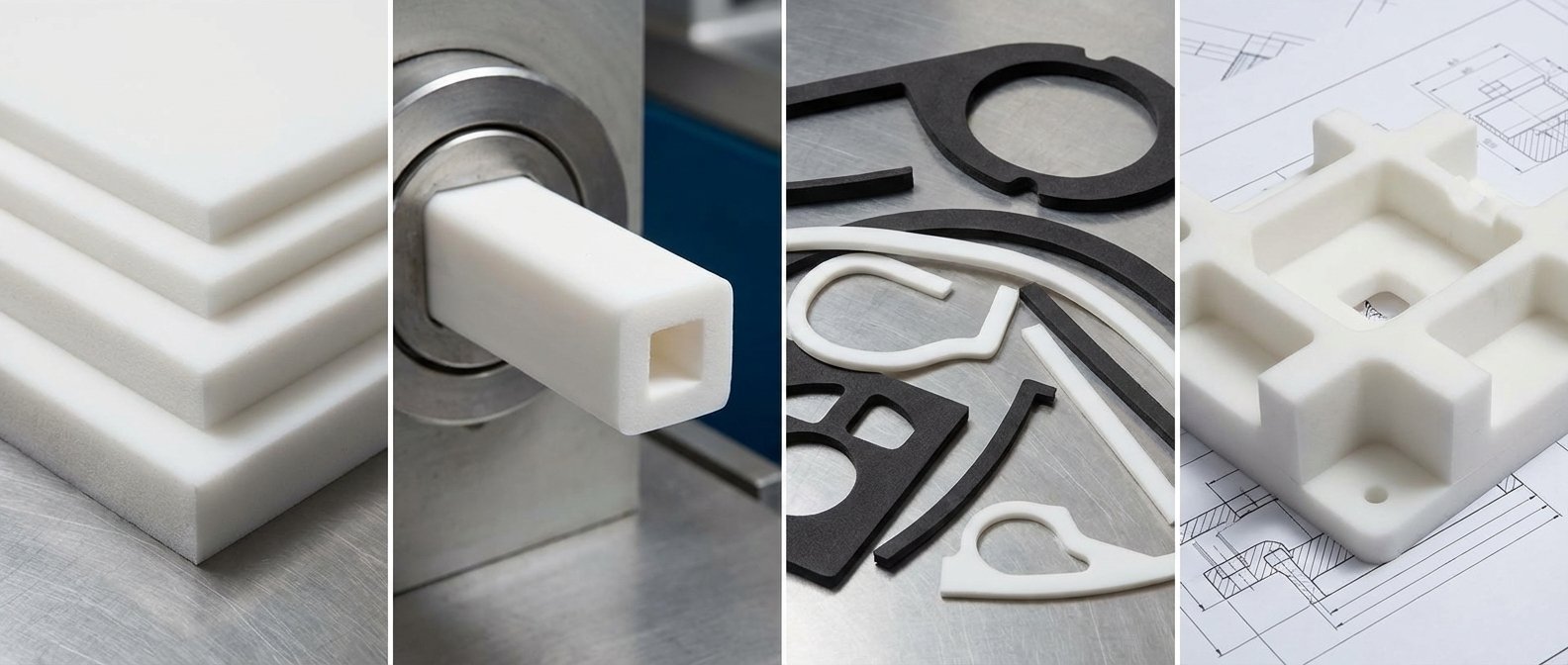

- Calendered sheet 0.5 – 30 mm thick
- Extruded profiles & cord
- Molded foam parts (complex geometry)
- Precision die-cutting & kiss-cutting
- UL94 V-0 flame retardant grades
Capability
Technical Specifications
| Processes | Calendering · Extrusion · Molding · Die-cutting |
|---|---|
| Thickness / Dia | 0.5 – 30 mm sheet; custom profile cross-sections |
| Density | 0.25 – 0.95 g/cm³ (closed-cell) |
| Hardness | Shore 00 20 – 80 / Shore A 10 – 40 |
| Compression Set | ≤ 5% (70h @ 100°C, 25% deflection) |
| Flame Rating | UL94 V-0 / HF-1 available |
| Temperature | -60°C to +200°C continuous |
| Applications | EV battery seal, thermal pad, EMI gasket, vibration damping, enclosure seal |
Process
From DFM to Ship in Four Steps
DFM & Quote
Send drawing (STEP / IGES / PDF). DFM feedback and formal quote within 24 hours.
Mold Build
In-house cold-runner valve-gate mold, T1 samples in 15–25 days depending on complexity.
Mass Production
300K cleanroom injection, automated inspection, full MES traceability per batch.
QC & Ship
CMM + vision + manual QC. FAI / PPAP / CoC reports available. World-wide logistics.
Applications
Where Our LSR Parts Ship
Inside the Department
Shop Floor Gallery
FAQ
Frequently Asked Questions
What density do I need?
Gap filling and cushioning: 0.25-0.40. Sealing: 0.40-0.60. Structural support: 0.60+. Tell us the compression force and seal gap — we calculate the right density.
Can the foam come with adhesive backing?
Yes — PSA (acrylic or silicone adhesive) lamination is available on sheets and die-cut parts, with liner.
Which flame rating?
UL94 V-0 and HF-1 grades available; standard grades pass automotive interior burn tests.
Silicone foam vs PORON / polyurethane foam?
Silicone foam survives temperatures and outdoor exposure that destroy PU/poron; choose silicone above 120°C continuous, outdoors, or where UL94 is required.
What is the MOQ?
Sheets: from one roll. Die-cut gaskets: no MOQ for prototyping; volume pricing from 1,000 pcs.

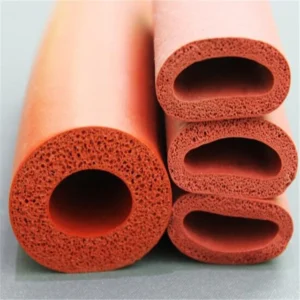

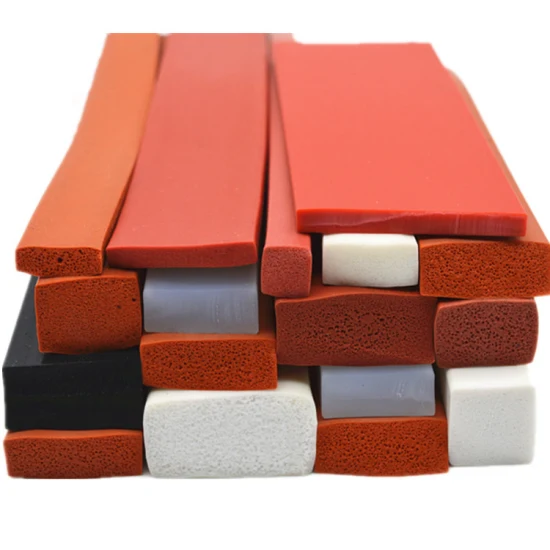

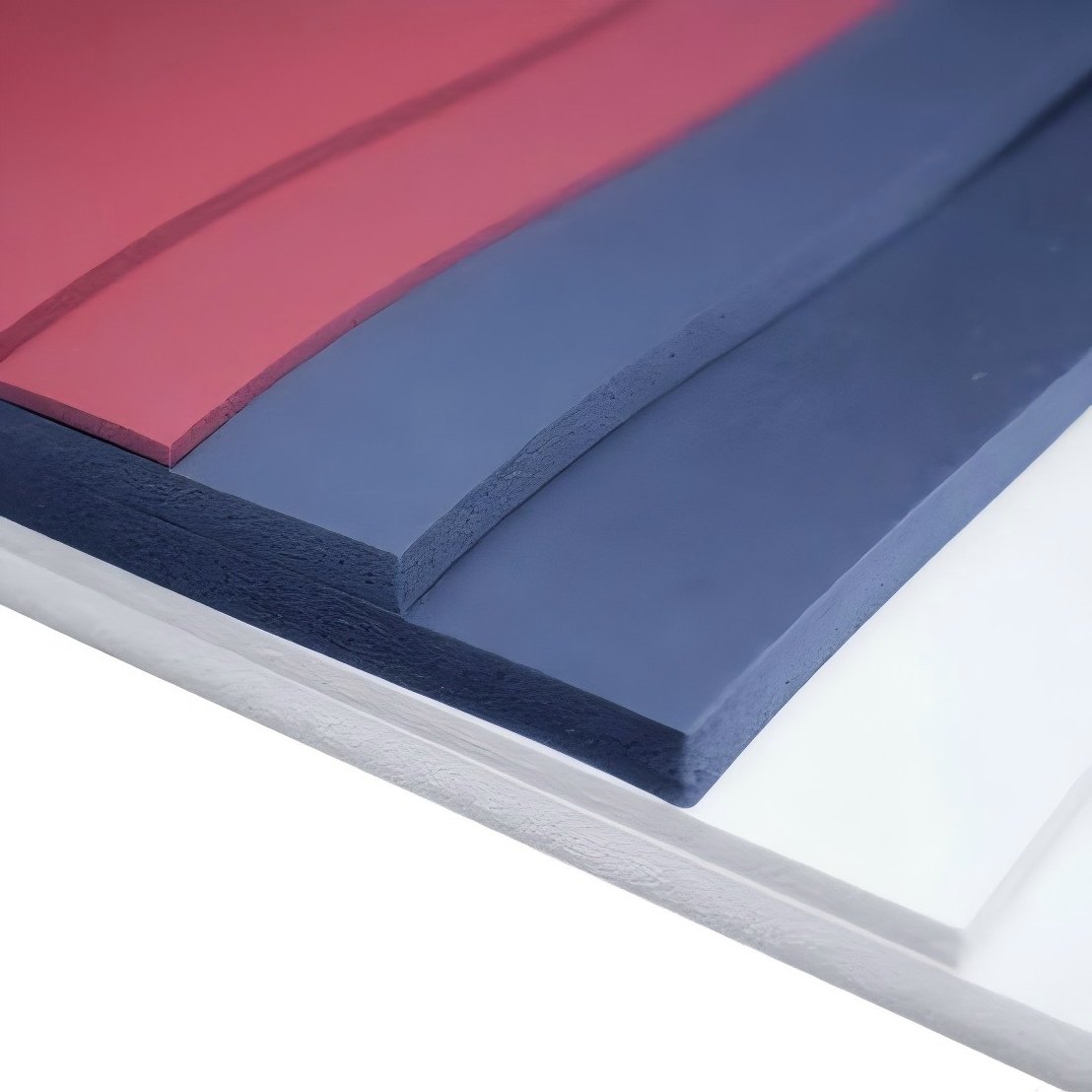

Product Exhibition
Product Exhibition
Ready to Start?
Send Your Drawing. Get DFM in 24 Hours.
Our engineers will review your part and come back with a quote, mold plan and lead time — no commitment required.
